Detail Information

Name:	Industrial Wide Belt Sander	Model:	MS13RR
Max Working Width:	1350mm	Power:	380v 50Hz Or Customized
Work Piece Max Width:	1350mm	Number Of Heads:	2
Highlight:	Customized Industrial Wide Belt Sander , Powerful Industrial Wide Belt Sander , Industrial Wide Belt Sander Metal

Product Description

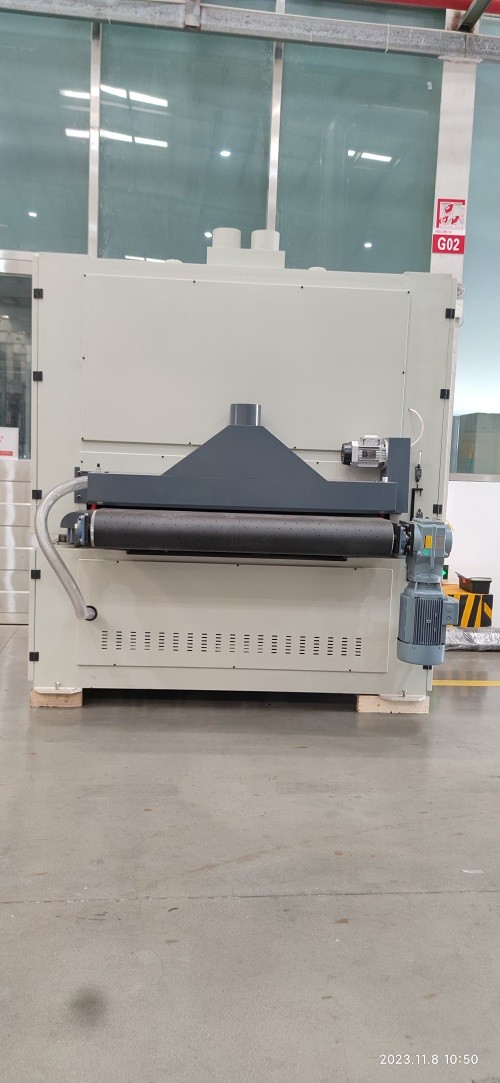

Metal Wide Belt Sander

General Description

A metal wide belt sander, also known as a wide belt grinding machine or simply a wide belt sander, is a powerful industrial tool used for sanding, smoothing, and finishing large metal surfaces. It consists of a horizontal conveyor belt that is typically several inches wide, which is driven by motorized rollers. The belt is coated with abrasive material such as sandpaper or grinding belts, which allows it to remove material from the metal surface.

The metal wide belt sander is designed for one wide part or multi smaller parts processed in a production line or in an independent way. Vacuum sucking work-table can fix minimum 100mm smaller parts on the conveyor belt to insure a good deburring or finishing.Either high productivity in a flow line or reliable effects for smaller parts, this metal wide belt sander will not let you down, but saving labor and time.

SPECIFICATIONS

Abrasive Belt Size 2500x1380mm
Motor : 22kw +22kwwith frequency control
Table Lifting Motor: 1.5kw

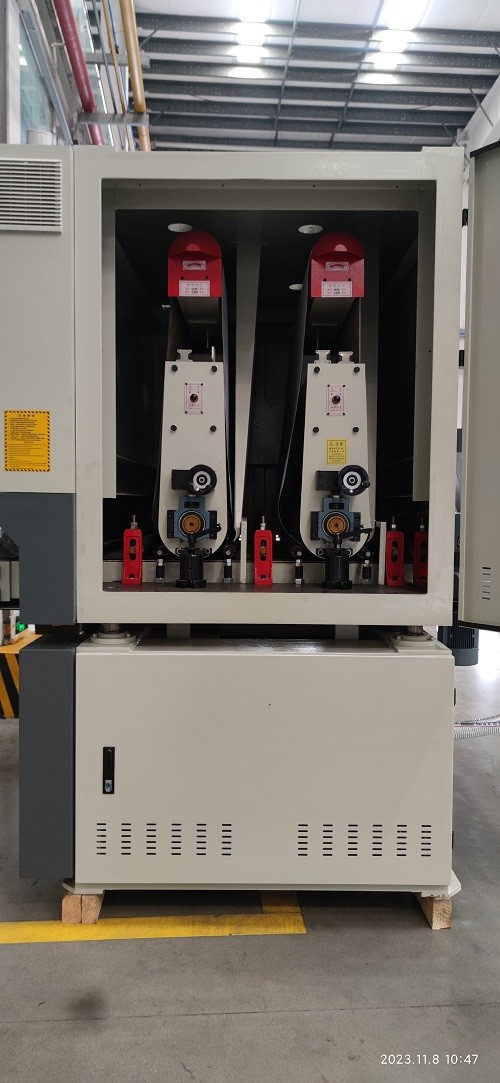

Number of Heads : 2
Sanding Drum Diameter: 240mm
Speed setting of sanding drum: Frequency converter control
Sanding Drum RPM: 1720
Power supply: 380v 50Hz or on request
Dust port size: drum 150mm x 6, space 100mm x 4
Automatic Thickness Control: Yes (Thickness or)
Conveyor Drive Motor 5.5kw
Feed Speed 5-25 meter per minute variable
Dimension 2200x2500x2300mm WxDxH
Weight 3.9 ton
Work piece Max Width 1350mm
Work piece Max Thickness 60mm
Work piece Min. Length 100mm

Customized Powerful Industrial Wide Belt Sander Metal 1350mm Work Piece Max Width 0

Tag:

Place of Origin:	China
Brand Name:	SKD
Model Number:	MS13RR
Document:	Product Brochure PDF

Minimum Order Quantity:	1 set
Price:	USD10000-350000
Packaging Details:	Shrink Wrapped or Woodcase
Delivery Time:	20-60 days
Payment Terms:	TT
Supply Ability:	70-100set per year
