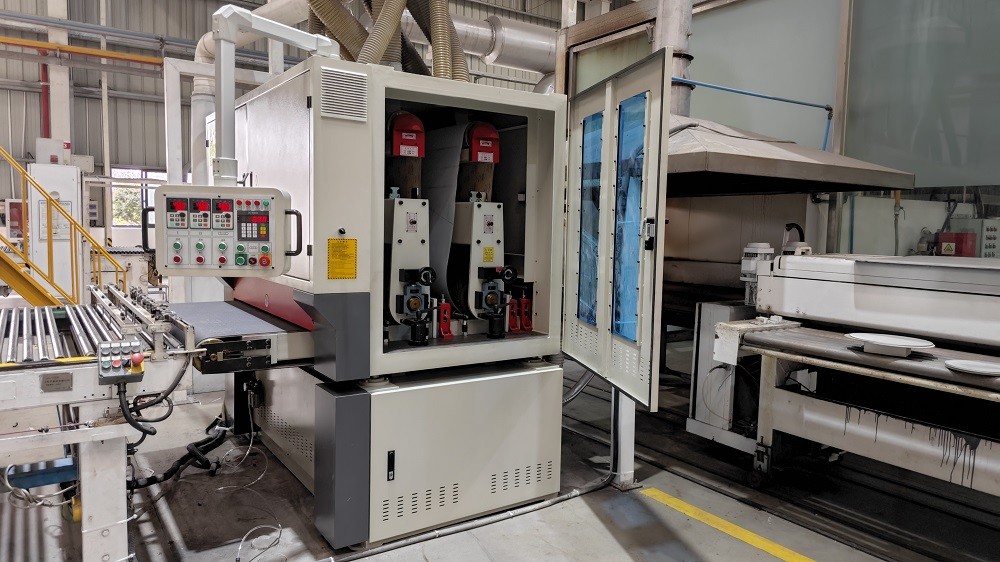

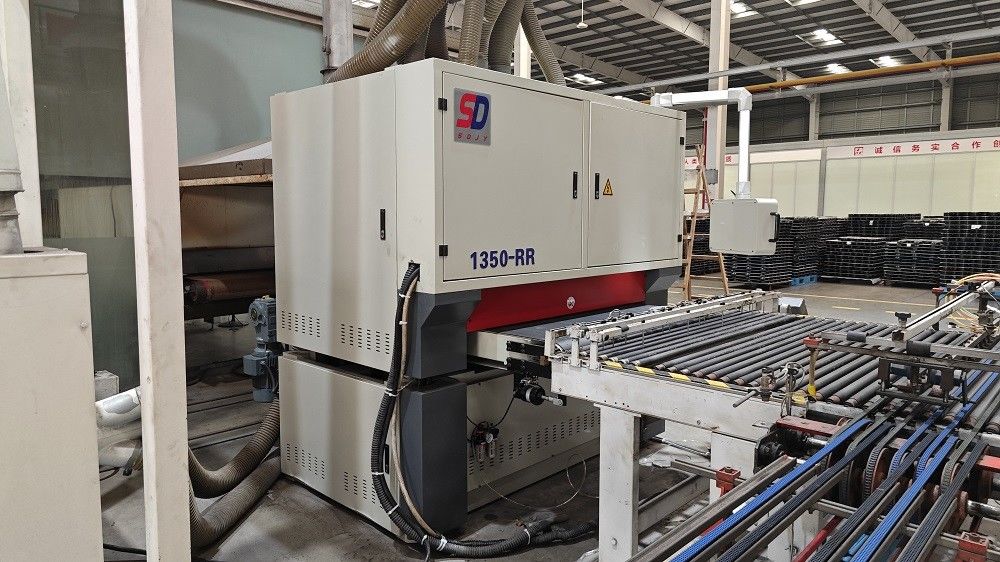

Precise Sanding Metal Wide Belt Sander Machine With Control Panel / Motor Load Meter

Metal Wide Belt Sander With Control Panel And Motor Load Meter For Precise Sanding

General Description

This is a metalworking wide belt sander for deburring, sanding,polishing, finishing, slag removal and texturing.With 2 powerful sanding drums and vacuum sucking work-table, the metal wide belt sander can process wide metal sheets, plates,middle and small size metal work-piece in an effective way for deburring, grinding and finishing.With a quick change of the abrasive belt, this metal wide belt sander can do slag removal and oxide removal of the metal parts done by plasma cut or flame cut .

1. Dust port size: drum 150mm x 6, space 100mm x 4
2. Automatic Thickness Control: Yes (Thickness or)
3. Foot Print: 51-1/2″ x 19″
4. Sanding Belt Oscillation: Yes
5. Sanding Belt Motor Break: Yes
6. Conveyor Opening 0-80mm
7. Floor to Table Height 900-990mm
8. Conveyor Drive Motor 5.5kw
9. Feed Speed 5-25 meter per minute variable
10. Dimension 2200x2500x2300mm WxDxH
11. Weight 3.9 ton
12. Work piece Max Width 1350mm
13. Work piece Max Thickness 60mm
14. Work piece Min. Length 100mm
