380V 50HZ Edge Rounding Deburring Machine 2 Heads For Sanding / Polishing / Finishing

Basic Information

Place of Origin:	China
Brand Name:	SKD
Model Number:	MS13RR
Document:	Product Brochure PDF

Minimum Order Quantity:	1 set
Price:	USD10000-350000
Packaging Details:	Shrink Wrapped or Woodcase
Delivery Time:	20-60 days
Payment Terms:	TT
Supply Ability:	70-100set per year

Get Best Price Contact Now

Detail Information

Name:	Edge Rounding Deburring Machine	Function:	Deburring, Grinding, Slag Removal, Finishing
Power:	380V 50HZ Or Customized	Sanding Belt Oscillation:	Yes
Sanding Belt Motor Break:	Yes	Number Of Heads:	2
Highlight:	380V Edge Rounding Deburring Machine , 50HZ Edge Rounding Deburring Machine , Edge Rounding Deburring Machine 2 Heads

Product Description

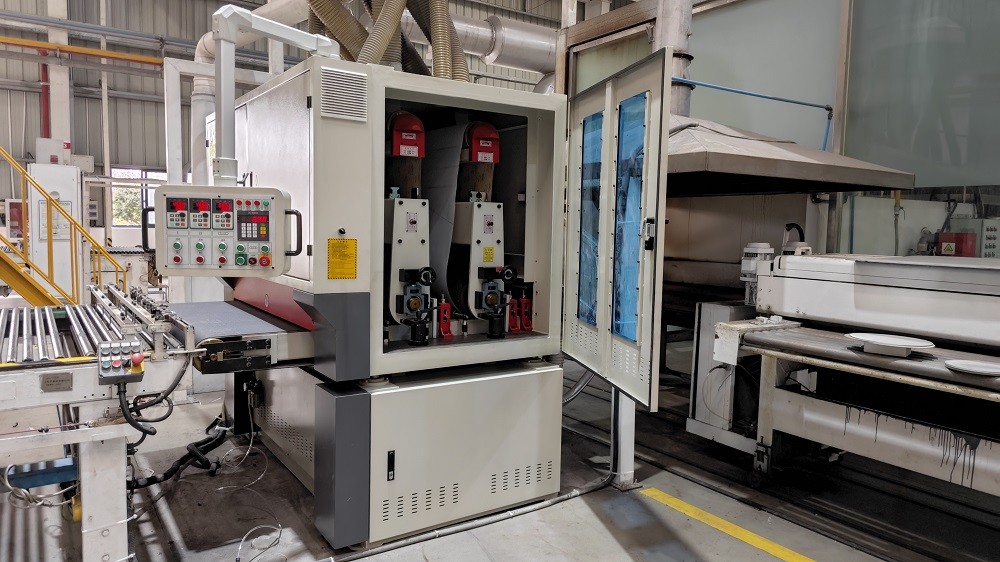

Metal Wide Belt Sander

General Description

This is a metalworking wide belt sander for deburring, sanding, polishing, finishing, slag removal and texturing.With 2 powerful sanding drums and vacuum sucking work-table, the metal wide belt sander can process wide metal sheets, plates,middle and small size metal work-piece in an effective way for deburring, grinding and finishing.With a quick change of the abrasive belt, this metal wide belt sander can do slag removal and oxide removal of the metal parts done by plasma cut or flame cut .

SPECIFICATIONS

Power supply: 380v 50Hz or on request
Dust port size: drum 150mm x 6, space 100mm x 4
Automatic Thickness Control: Yes (Thickness or)
Foot Print: 51-1/2″ x 19″
Sanding Belt Oscillation: Yes
Sanding Belt Motor Break: Yes
Conveyor Opening 0-80mm
Floor to Table Height 900-990mm
Conveyor Drive Motor 5.5kw
Feed Speed 5-25 meter per minute variable
Dimension 2200x2500x2300mm WxDxH
Weight 3.9 ton
Work piece Max Width 1350mm
Work piece Max Thickness 60mm
Work piece Min. Length 100mm

380V 50HZ Edge Rounding Deburring Machine 2 Heads For Sanding / Polishing / Finishing 0
