Metal Wide Band Sander Machine 380V 50HZ Wide Belt Grinding Machine

Basic Information
Place of Origin: China
Brand Name: SKD
Model Number: MS13RR
Document: Product Brochure PDF
Minimum Order Quantity: 1 set
Price: USD10000-350000
Packaging Details: Shrink Wrapped or Woodcase
Delivery Time: 20-60 days
Payment Terms: TT
Supply Ability: 70-100set per year
Detail Information
Name: Metal Wide Band Sander Type: Sanding
Function: Deburring, Grinding, Slag Removal, Finishing Power: 380v 50Hz Or Customized
Table Lifting Motor: 1.5kw Number Of Heads: 2
Highlight:

Metal Wide Band Sander

,

Wide Band Sander Machine 380V

,

50HZ Wide Belt Grinding Machine


Product Description

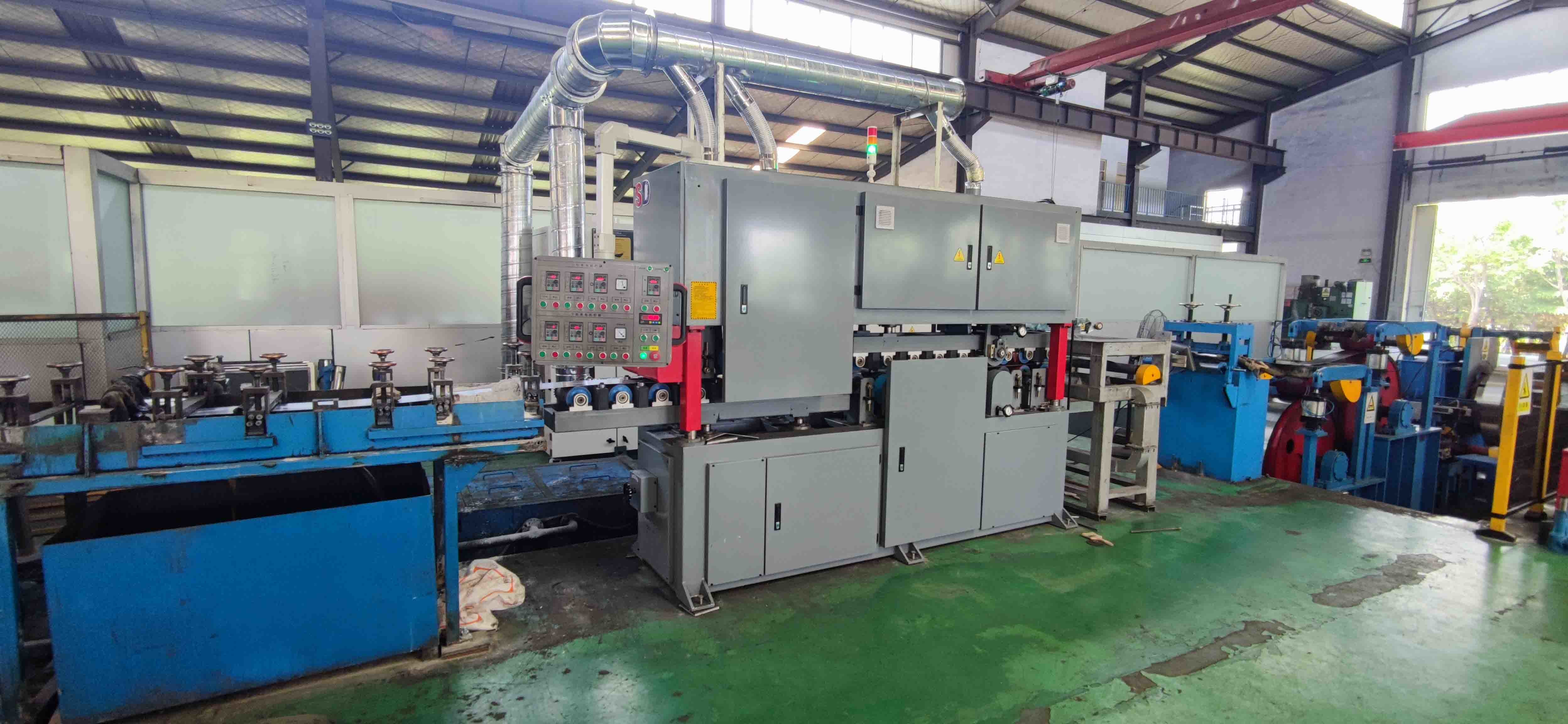

Metal Wide Belt Sander



General Description


A metal wideband sander is a powerful industrial tool, also known as a wideband sander or simply a wideband sander, used for sanding, polishing and finishing large metal surfaces. It consists of a horizontal conveyor belt, usually several inches wide, driven by electric rollers. The conveyor belt is coated with an abrasive material such as sandpaper or abrasive belts, allowing it to remove material from metal surfaces.



Metal wideband sanders are widely used in multiple industries including metal processing, automotive, aerospace, and manufacturing. They are designed to handle heavy-duty applications, capable of removing large amounts of material quickly and efficiently. These machines are typically used for tasks such as deburring, grinding welds, smoothing surfaces, and preparing metals for painting or coating.



Belt sanders typically have adjustable settings that control the speed of the belt, the pressure applied to the workpiece, and the type of abrasive used. This enables operators to achieve the desired surface finish and remove material to precise specifications. Some advanced models may also include additional features such as automatic feeding systems, digital controls, and multiple sanding heads to increase the machine's versatility and productivity.



It is important to note that safety precautions should be followed when operating metal wide belt sanders as they are powerful machines that can cause injury if not used correctly. Operators should wear appropriate personal protective equipment such as safety glasses, gloves and hearing protection and follow the manufacturer's instructions and safety guidelines.


SPECIFICATIONS




  1. Abrasive Belt Size 2500x1380mm
  2. Motor : 22kw +22kwwith frequency control
  3. Table Lifting Motor: 1.5kw
  4. Number of Heads :2
  5. Sanding Drum Diameter: 240mm
  6. Speed setting of sanding drum: Frequency converter control
  7. Sanding Drum RPM: 1720
  8. Conveyor Drive Motor 5.5kw
  9. Feed Speed 5-25 meter per minute variable
  10. Dimension 2200x2500x2300mm WxDxH
  11. Weight 3.9 ton
  12. Work piece Max Width 1350mm
  13. Work piece Max Thickness 60mm
  14. Work piece Min. Length 100mm



Metal Wide Band Sander Machine 380V 50HZ Wide Belt Grinding Machine 0Metal Wide Band Sander Machine 380V 50HZ Wide Belt Grinding Machine 1Metal Wide Band Sander Machine 380V 50HZ Wide Belt Grinding Machine 2
