Industrial Tool Wide Band Sander Customized For Deburring / Grinding

Basic Information
Place of Origin: China
Brand Name: SKD
Model Number: MS13RR
Document: Product Brochure PDF
Minimum Order Quantity: 1 set
Price: USD10000-350000
Packaging Details: Shrink Wrapped or Woodcase
Delivery Time: 20-60 days
Payment Terms: TT
Supply Ability: 70-100set per year
Detail Information
Name: Wide Band Sander Function: Deburring, Grinding, Slag Removal, Finishing
Contact Drum: High Quality Work Piece Max Thickness: 60mm
Table Lifting Motor: 1.5kw Number Of Heads: 2
Highlight:

Industrial Tool Wide Band Sander

,

Wide Band Sander Customized

,

Industrial Wide Band Sander


Product Description

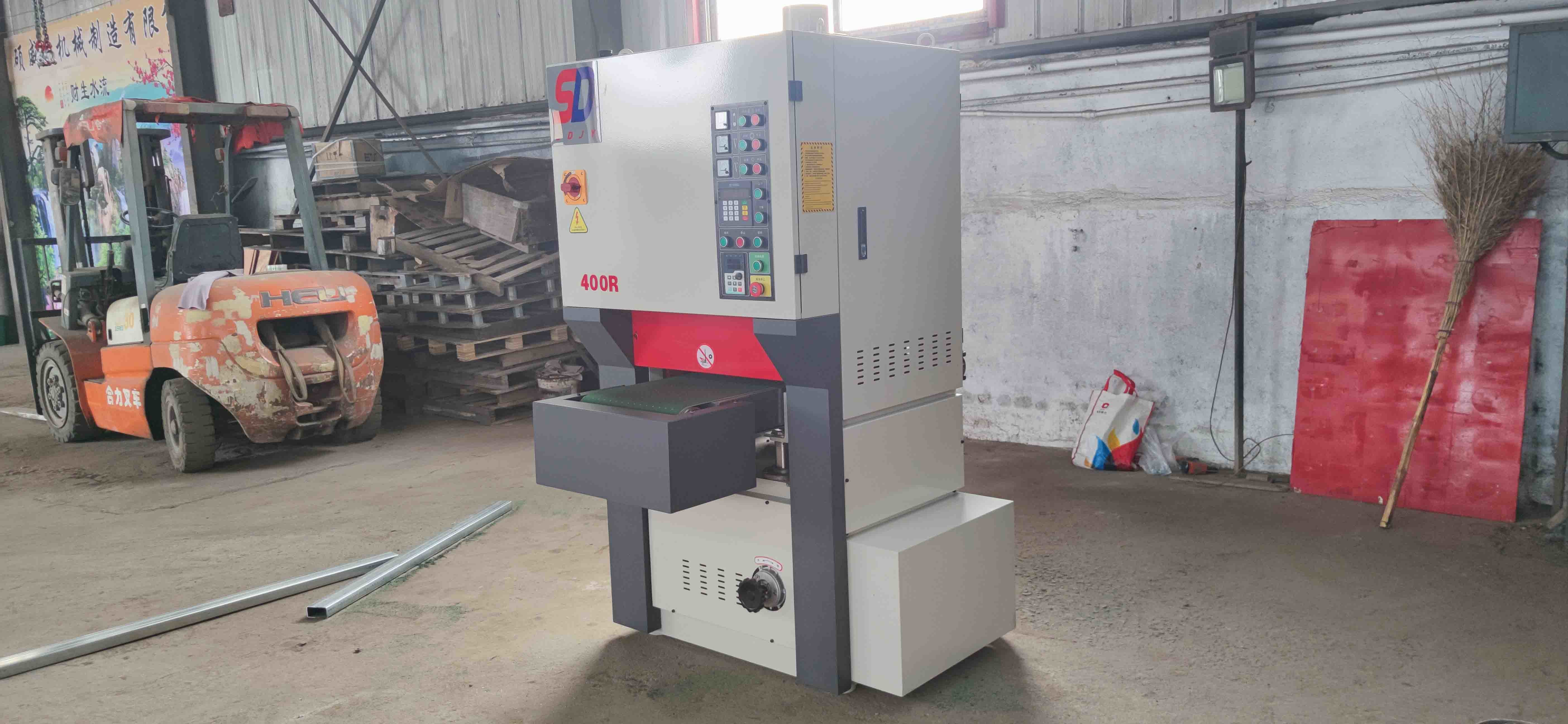

Metal Wide Belt Sander



General Description


A metal wideband sander, also known as a wideband sander or simply a wideband sander, is a powerful industrial tool used for sanding, polishing and finishing large metal surfaces. It consists of a horizontal conveyor belt, usually several inches wide, driven by electric rollers. The conveyor belt is coated with an abrasive material such as sandpaper or abrasive belts, allowing it to remove material from metal surfaces.

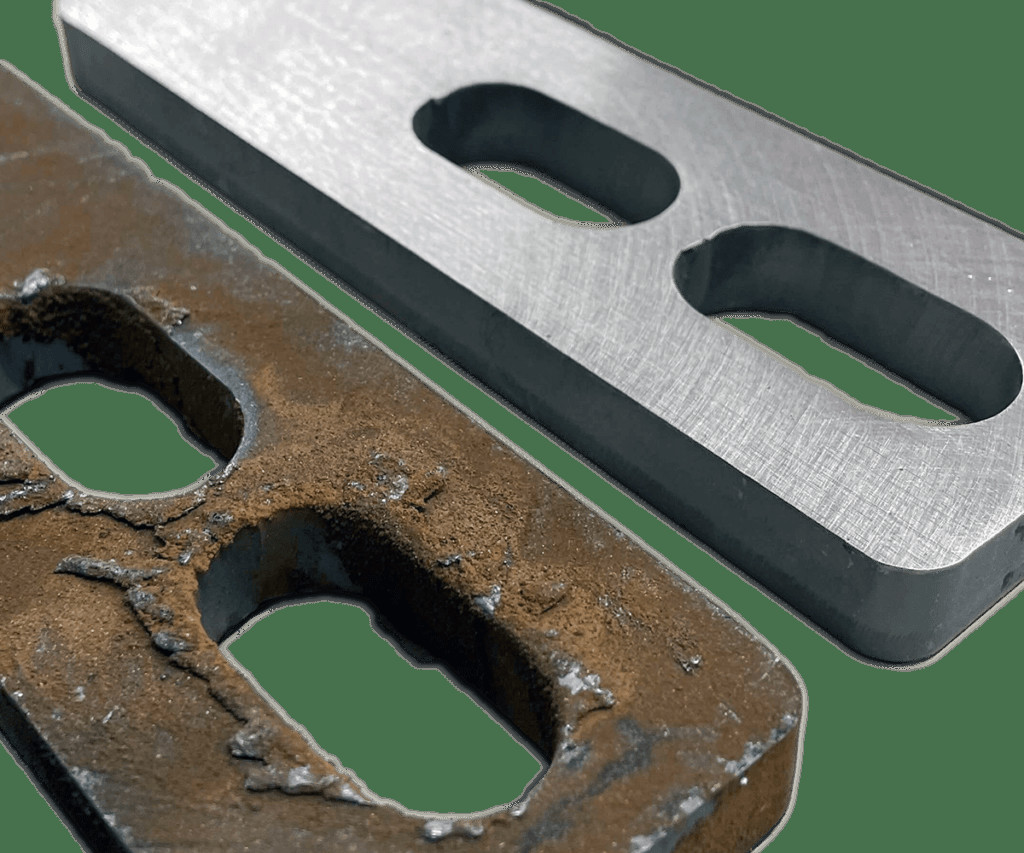

Metal wideband sanders are widely used in multiple industries including metal processing, automotive, aerospace, and manufacturing. They are designed to handle heavy-duty applications, capable of removing large amounts of material quickly and efficiently. These machines are typically used for tasks such as deburring, grinding welds, smoothing surfaces, and preparing metals for painting or coating.



Belt sanders typically have adjustable settings that control the speed of the belt, the pressure applied to the workpiece, and the type of abrasive used. This enables operators to achieve the desired surface finish and remove material to precise specifications. Some advanced models may also include additional features such as automatic feeding systems, digital controls, and multiple sanding heads to increase the machine's versatility and productivity.


SPECIFICATIONS

  1. Power supply: 380v 50Hz or on request
  2. Dust port size: drum 150mm x 6, space 100mm x 4
  3. Automatic Thickness Control: Yes (Thickness or)
  4. Foot Print: 51-1/2″ x 19″
  5. Sanding Belt Oscillation: Yes
  6. Sanding Belt Motor Break: Yes
  7. Conveyor Opening 0-80mm
  8. Floor to Table Height 900-990mm
  9. Conveyor Drive Motor 5.5kw
  10. Feed Speed 5-25 meter per minute variable
  11. Dimension 2200x2500x2300mm WxDxH
  12. Weight 3.9 ton
  13. Work piece Max Width 1350mm
  14. Work piece Max Thickness 60mm
  15. Work piece Min. Length 100mm



Industrial Tool Wide Band Sander Customized For Deburring / Grinding 0Industrial Tool Wide Band Sander Customized For Deburring / Grinding 1
