Detail Information

Name:	Metal Wide Belt Sander	Max Working Width:	1350mm
Control Panel:	Control Panel With Motor Load Meter,digital Readout	Work Piece Max Width:	1350mm
Table Lifting Motor:	1.5kw	Number Of Heads:	2
Highlight:	Metalworking Wide Belt Sander Machine , Wide Belt Sander Machine Manufacturer , Wide Belt Deburring Machine

Product Description

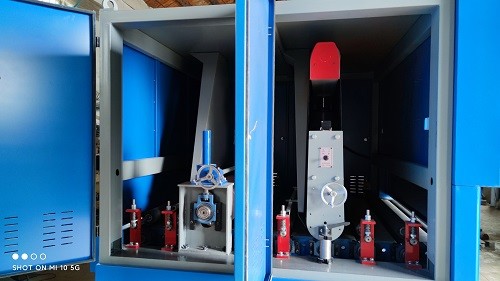

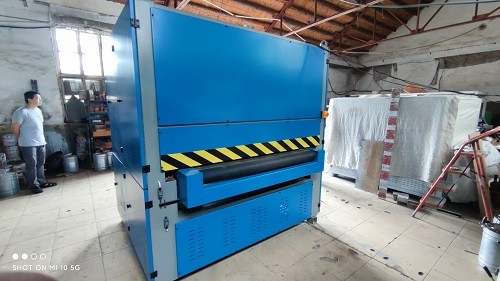

Metal Wide Belt Sander

General Description

This is a metalworking wide belt sander for deburring, sanding,polishing, finishing, slag removal and texturing.With 2 powerful sanding drums and vacuum sucking work-table, the metal wide belt sander can process wide metal sheets, plates,middle and small size metal work-piece in an effective way for deburring, grinding and finishing.With a quick change of the abrasive belt, this metal wide belt sander can do slag removal and oxide removal of the metal parts done by plasma cut or flame cut .

The metal wide belt sander is designed for one wide part or multi smaller parts processed in a production line or in an independent way. Vacuum sucking work-table can fix minimum 100mm smaller parts on the conveyor belt to insure a good deburring or finishing.Either high productivity in a flow line or reliable effects for smaller parts, this metal wide belt sander will not let you down, but saving labor and time.

SPECIFICATIONS

Abrasive Belt Size 2500x1380mm
Motor : 22kw +22kwwith frequency control
Table Lifting Motor: 1.5kw
Number of Heads :2

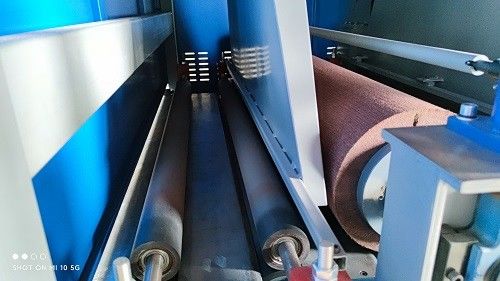

Sanding Drum Diameter: 240mm
Work piece fix :Vacuum
Vacuum Area:1250×200mm
Speed setting of sanding drum: Frequency converter control
Sanding Drum RPM: 1720
Foot Print: 51-1/2″ x 19″
Sanding Belt Oscillation: Yes
Sanding Belt Motor Break: Yes
Conveyor Opening 0-80mm
Floor to Table Height 900-990mm
Conveyor Drive Motor 5.5kw

Metalworking Wide Belt Sander Machine Manufacturer For Deburring / Sanding / Polishing 0

Tag:

Place of Origin:	China
Brand Name:	SKD
Model Number:	MS13RR
Document:	Product Brochure PDF

Minimum Order Quantity:	1 set
Price:	USD10000-350000
Packaging Details:	Shrink Wrapped or Woodcase
Delivery Time:	20-60 days
Payment Terms:	TT
Supply Ability:	70-100set per year
