Name: Affordable Wide Belt Sander , MS13RR Big Belt Sander Machine Manufacturer
Brand: SKD Machinery(Qingdao)Co. Ltd.
SKU: MS13RR
Price: 180,000.00 USD
Availability: InStock

Detail Information

Name:	Big Belt Sander Machine	Type:	Sanding
Model:	MS13RR	Function:	Deburring, Grinding, Slag Removal, Finishing
Max Working Width:	1350mm	Power:	380v 50Hz Or Customized
Highlight:	Affordable Wide Belt Sander Machine , Big Belt Sander Machine Manufacturer , MS13RR Big Belt Sander Machine

Product Description

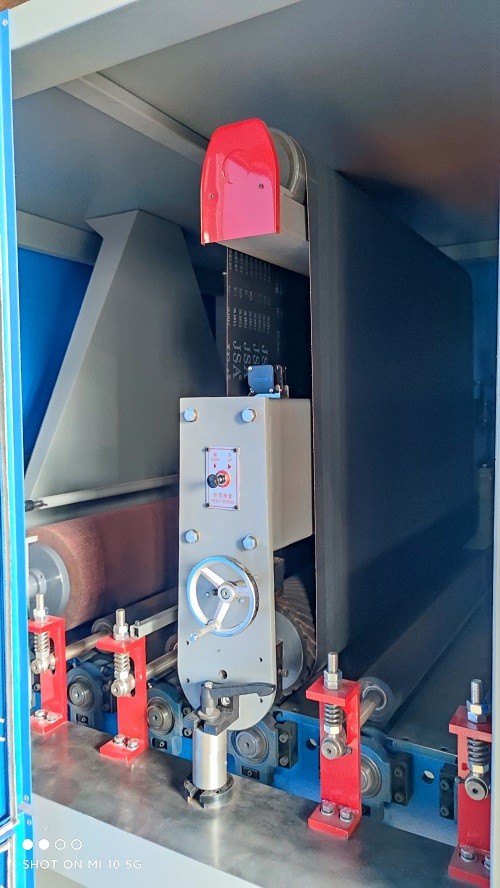

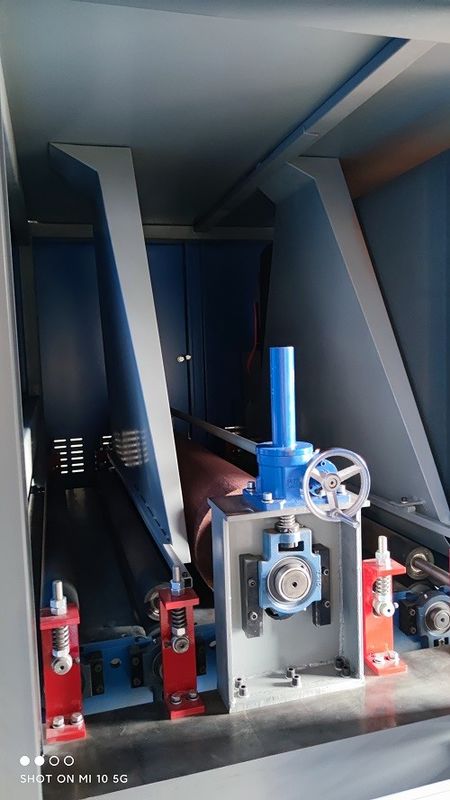

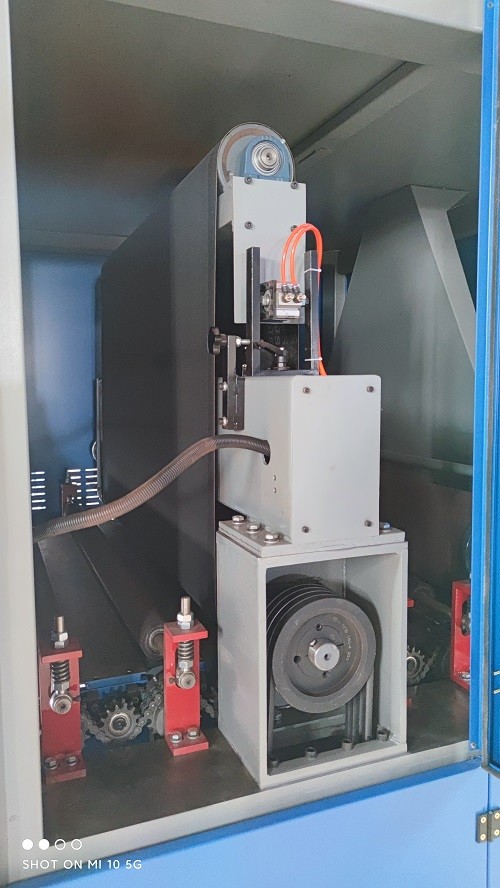

Metal Wide Belt Sander

General Description

This is a metalworking wide belt sander for deburring, sanding,polishing, finishing, slag removal and texturing.With 2 powerful sanding drums and vacuum sucking work-table, the metal wide belt sander can process wide metal sheets, plates,middle and small size metal work-piece in an effective way for deburring, grinding and finishing. With a quick change of the abrasive belt, this metal wide belt sander can do slag removal and oxide removal of the metal parts done by plasma cut or flame cut .

The wide belt sander typically incorporates adjustable settings for controlling the speed of the conveyor belt, the pressure applied to the workpiece, and the type of abrasive used. This allows operators to achieve the desired level of surface finish and remove material to precise specifications. Some advanced models may also include additional features such as automated feeding systems, digital controls, and multiple sanding heads for increased versatility and productivity.

SPECIFICATIONS

Abrasive Belt Size 2500x1380mm
Motor : 22kw +22kwwith frequency control
Table Lifting Motor: 1.5kw
Number of Heads :2
Sanding Drum Diameter: 240mm
Work piece fix :Vacuum
Vacuum Area:1250×200mm
Speed setting of sanding drum: Frequency converter control
Sanding Drum RPM: 1720
Power supply: 380v 50Hz or on request
Dust port size: drum 150mm x 6, space 100mm x 4
Automatic Thickness Control: Yes (Thickness or)
Foot Print: 51-1/2″ x 19″
Sanding Belt Oscillation: Yes
Sanding Belt Motor Break: Yes
Conveyor Opening 0-80mm
Floor to Table Height 900-990mm
Conveyor Drive Motor 5.5kw
Feed Speed 5-25 meter per minute variable
Dimension 2200x2500x2300mm WxDxH
Weight 3.9 ton
Work piece Max Width 1350mm
Work piece Max Thickness 60mm
Work piece Min. Length 100mm

Affordable Wide Belt Sander , MS13RR Big Belt Sander Machine Manufacturer 0

Tag:

Place of Origin:	China
Brand Name:	SKD
Model Number:	MS13RR
Document:	Product Brochure PDF

Minimum Order Quantity:	1 set
Price:	USD10000-350000
Packaging Details:	Shrink Wrapped or Woodcase
Delivery Time:	20-60 days
Payment Terms:	TT
Supply Ability:	70-100set per year
