Detail Information

Name:	Wide Belt Sanding Machine	Type:	Sanding
Function:	Deburring, Grinding, Slag Removal, Finishing	Max Working Width:	1350mm
Power:	380v 50Hz Or Customized	Table Lifting Motor:	1.5kw
Highlight:	Double Head Wide Belt Sanding Machine , Metalworking Wide Belt Sanding Machine , Double Head Wide Belt Sanders metalworking

Product Description

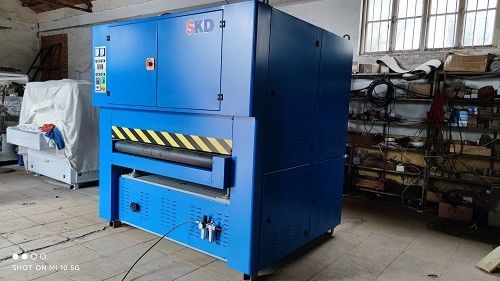

Metal Wide Belt Sander

General Description

This is a metalworking wide belt sander for deburring, sanding,polishing, finishing, slag removal and texturing.With 2 powerful sanding drums and vacuum sucking work-table, the metal wide belt sander can process wide metal sheets, plates,middle and small size metal work-piece in an effective way for deburring, grinding and finishing.With a quick change of the abrasive belt, this metal wide belt sander can do slag removal and oxide removal of the metal parts done by plasma cut or flame cut .

The metal wide belt sander is designed for one wide part or multi smaller parts processed in a production line or in an independent way. Vacuum sucking work-table can fix minimum 100mm smaller parts on the conveyor belt to insure a good deburring or finishing.Either high productivity in a flow line or reliable effects for smaller parts, this metal wide belt sander will not let you down, but saving labor and time.

FEATURES

1350mm max working width
Digital thickness readout for conveyor height

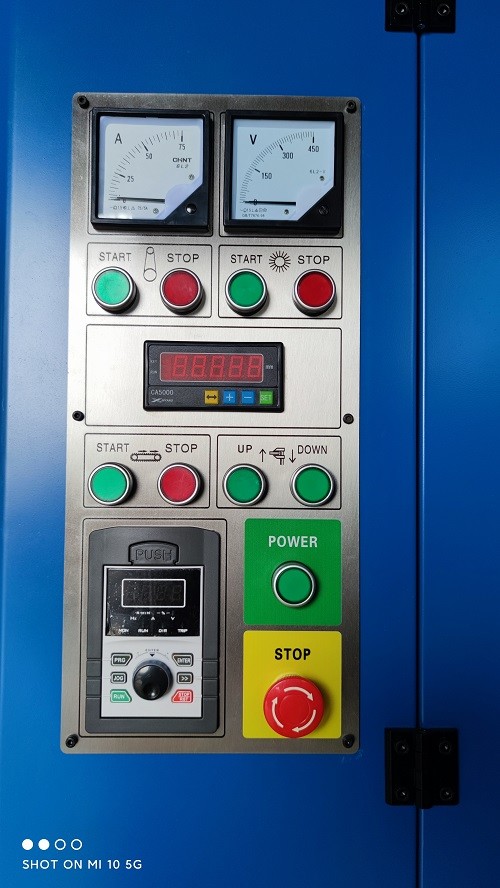

Control panel with motor load meter,digital readout
Electronic abrasive belt tracking
Pneumatic abrasive tensioning

SPECIFICATIONS

Dimension 2200x2500x2300mm WxDxH
Weight 3.9 ton
Work piece Max Width 1350mm
Work piece Max Thickness 60mm
Work piece Min. Length 100mm
Abrasive Belt Size 2500x1380mm
Motor : 22kw +22kwwith frequency control
Table Lifting Motor: 1.5kw
Number of Heads :2

Double Head Wide Belt Sanding Machine , Wide Belt Sanders metalworking 0

Tag:

Place of Origin:	China
Brand Name:	SKD
Model Number:	MS13RR
Document:	Product Brochure PDF

Minimum Order Quantity:	1 set
Price:	USD10000-350000
Packaging Details:	Shrink Wrapped or Woodcase
Delivery Time:	20-60 days
Payment Terms:	TT
Supply Ability:	70-100set per year
