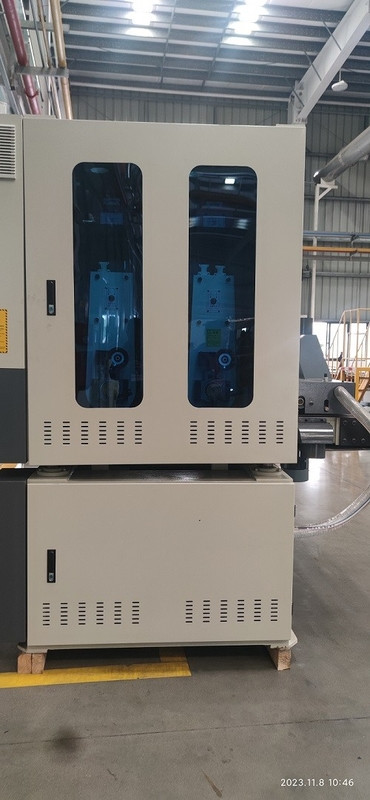

Wide Belt Sanding Machine
General
This model can be configured for metal finishing or deburring. This versatile group of machines is available in 2 widths with configurations of 1-3 heads. By combining an abrasive belt and a nonwoven roll brush, products can be deburred and rounded in one pass. The machine is produced for deburring laser cut metal and edge rounding of sides, with low user costs.
Technical Data
- Number of heads 1-3
- Available in multiple configurations depending on customer application
- Machine widths of 37″, and 52″
- Electronic photo-eye abrasive belt tracking
- Dust extraction available
- Minikol Go-To bed position device
- 15-45 fpm feed speed
- Up to 40 HP main motors
- 0-6″ machine opening
- 8″ minimum part length
- 6-10″ contact drums
- 8″ brush head diameter
- Oscillating brush heads
- High production capacity with increased ROI and reduced operating costs
- Increased throughput with the ability to run up to 2 shifts
- Deburring, edge breaking, edge radiussing, and surface finishing in one pass using multiple heads
- Electronic photo tracking eyes for accurate abrasive belt tracking
- Ability to customize configurations based on customer applications
- Removal of vertical burrs from stamped, punched, laser, plasma, and water-jet cut parts
- Dry operation
- Small footprint
In the field of metal processing, wideband sanders are widely used in the following areas:
Removing burrs from metal surfaces: During metal cutting, stamping, welding, etc., burrs and rough surfaces are often left behind. A wide belt sander can quickly and effectively remove burrs from metal surfaces by using a sanding belt or grinding wheel, making it smooth and safe.
Surface Preparation and Finish Improvement: A wide band sander can be used to treat and improve the surface finish of metal workpieces. By using the proper sanding belt and sanding process, scratches, oxide layers, rust, and other unevenness can be removed from the surface, thereby improving the quality and appearance of the metal surface.
Edge Trimming and Chamfering: A wide band sander can trim and chamfer the edges of metal workpieces. It removes sharp edges, making them safer, and improves the appearance quality of the workpiece through chamfering.
Smoothing and Dimensional Control: A wide band sander can be used to flatten the surface of a metal workpiece and control its size and flatness. Through appropriate abrasive belt selection and process parameter adjustment, precise flatness and size requirements can be achieved to meet the design requirements of metal workpieces.
Refining and Polishing: For metal workpieces that require a high degree of finish and fine surface quality, a wideband sander can also be used for refining and polishing. By using fine-grained abrasive belts and a further polishing process, a higher finish and shine can be achieved on the metal surface.
In summary, wideband sanders play an important role in metal processing. It can provide efficient, precise and consistent surface treatment and sanding results to meet the quality requirements of metal workpieces in various industries. Whether in mass production or customized processing, wideband sanders can provide reliable solutions for metal processing companies.
