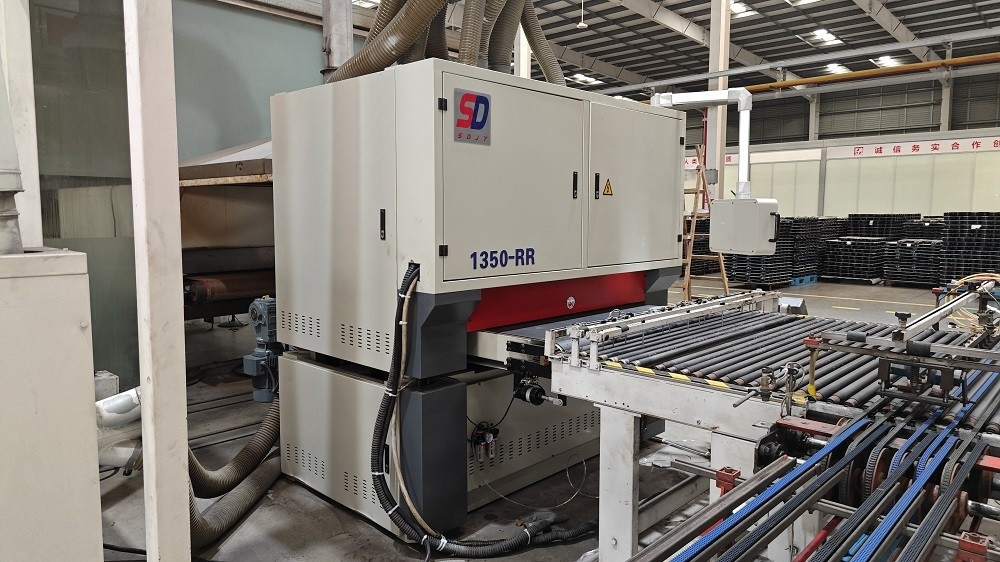

Versatile Wide Belt Sanding Machine For Edge Breaking / Edge Radiusing

Wide Belt Sanding Machine

General

This model can be configured for metal finishing or deburring. This versatile group of machines is available in 2 widths with configurations of 1-3 heads. By combining an abrasive belt and a nonwoven roll brush, products can be deburred and rounded in one pass. The machine is produced for deburring laser cut metal and edge rounding of sides, with low user costs.

Technical Data

• Number of heads 1-3
• Available in multiple configurations depending on customer application
• Machine widths of 37″, and 52″
• Electronic photo-eye abrasive belt tracking
• Dust extraction available
• Minikol Go-To bed position device
• 15-45 fpm feed speed
• Up to 40 HP main motors
• 0-6″ machine opening
• 8″ minimum part length
• 6-10″ contact drums
• 8″ brush head diameter
• Oscillating brush heads
• High production capacity with increased ROI and reduced operating costs
• Increased throughput with the ability to run up to 2 shifts
• Deburring, edge breaking, edge radiussing, and surface finishing in one pass using multiple heads
• Electronic photo tracking eyes for accurate abrasive belt tracking
• Ability to customize configurations based on customer applications
• Removal of vertical burrs from stamped, punched, laser, plasma, and water-jet cut parts
• Dry operation
• Small footprint
